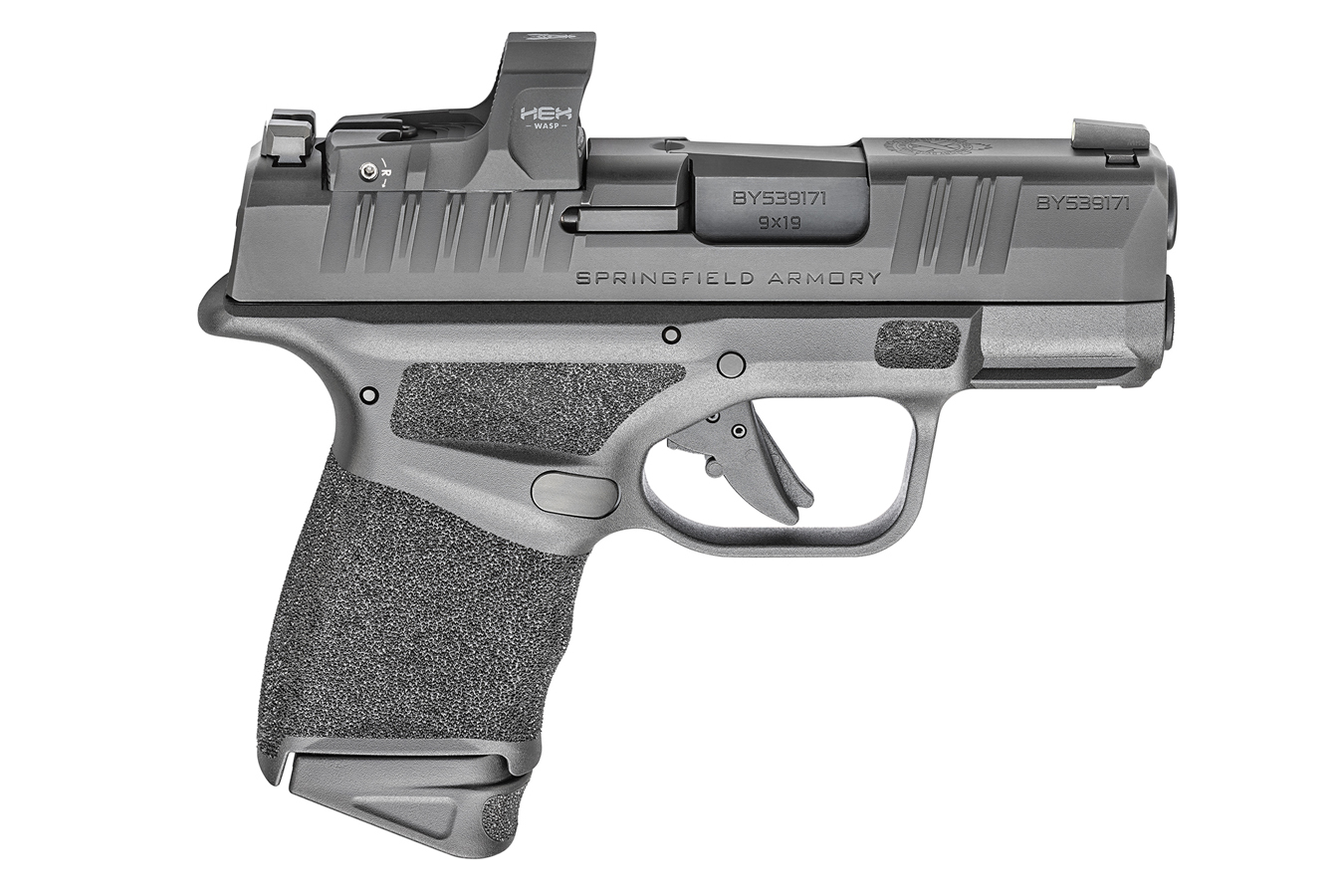

Springfield Hellcat Micro-Compact 9mm Pistol with HEX WASP Red Dot

When you require a concealed carry pistol that delivers full-size capacity in a truly micro package, the Springfield Hellcat Micro-Compact 9mm Pistol with HEX WASP Red Dot stands as a definitive solution. This factory-integrated system combines Springfield Armory’s award-winning Hellcat platform with the purpose-built HEX WASP optic, eliminating the need for aftermarket milling or adapter plates. Designed for deep concealment without sacrificing grip control or round count, this pistol is engineered for serious defensive use.

Overview

The Springfield Hellcat Micro-Compact 9mm Pistol with HEX WASP Red Dot represents a milestone in micro-compact firearm design. With a standard flush-fit magazine holding 11 rounds and an extended 13-round magazine included, this pistol challenges the notion that smaller guns must compromise on capacity. The slide is pre-milled at the factory to accept the HEX WASP, a low-profile red dot sight that co-witnesses with the high-visibility front sight. The overall length of 6 inches and a height of 4 inches make this one of the most concealable 9mm pistols available, while the adaptive grip texture ensures a positive purchase even in adverse conditions.

Features & Specs

• Factory-Integrated Optic: The HEX WASP red dot is mounted directly into the slide with no adapter plate required. This system provides a crisp 3 MOA dot, automatic ambient light adjustment, and a battery life of over 20,000 hours on a single CR2032 battery.
• Capacity and Magazine: Includes one flush-fit 11-round magazine and one extended 13-round magazine with a pinky extension. Both magazines feature a high-visibility witness hole for easy round counting.
• Adaptive Grip Texture: Springfield’s proprietary Grip Zone technology uses a variable texture pattern that is aggressive on the backstrap and sides while remaining more comfortable against the body. This reduces printing while maintaining a locked-in grip.

• Barrel and Action: 3-inch hammer-forged steel barrel with a Melonite finish. The barrel is paired with a captive recoil spring assembly that reduces felt recoil and allows for faster follow-up shots.
• Trigger System: A flat-faced trigger with a crisp break and short reset. The trigger pull weight is factory-set at approximately 5.5 to 6 pounds, consistent with defensive standards.
• Safety Features: Integrated trigger safety, firing pin block, and a loaded chamber indicator. The pistol is designed without a manual thumb safety for streamlined operation under stress.

• Dimensions: Overall length 6.0 inches, height 4.0 inches (with flush magazine), width 1.0 inch. Unloaded weight is 17.9 ounces without optic.
• Sights: Tactical rack U-notch rear sight with a tritium front lamp. The rear sight is serrated to reduce glare. The HEX WASP co-witnesses with the iron sights.
• Finish: Slide and barrel feature a Melonite finish for corrosion resistance. The frame is a high-strength polymer with a steel insert for durability.

The Springfield Hellcat Micro-Compact 9mm Pistol with HEX WASP Red Dot is a factory-tuned system where the optic and firearm are designed to function as one unit. The optic’s automatic brightness sensor adjusts to ambient light, and the sealed housing protects against moisture and debris.

Who It’s For

This pistol is intended for the civilian concealed carrier who demands a reliable, high-capacity firearm in a package that can be carried all day without fatigue. It is also suited for law enforcement officers who require a backup weapon or off-duty carry option that maintains the same manual of arms as larger duty pistols. Shooters who have experience with red dot sights will appreciate the direct-mount HEX WASP, while those new to optics will find the co-witnessing iron sights provide a smooth transition. The Hellcat is not a range toy or a competition gun; it is a purpose-built defensive tool for those who prioritize concealability and capacity equally.

Shipping & FFL

This firearm ships to your chosen Federal Firearms License (FFL) dealer. By purchasing this item, you acknowledge that you will arrange for transfer through a licensed FFL dealer in your state. We ship only to active FFL holders on file. You must be at least 21 years of age to purchase a handgun, and all applicable federal, state, and local laws apply. Please contact your local FFL to confirm they will accept the transfer before placing your order. It is your responsibility to ensure compliance with all regulations in your jurisdiction. We do not ship to PO boxes or APO addresses for firearms. A signature is required upon delivery.
